Mathematical Statistics

🎯 Learning Objectives

By the end of this lecture, you will be able to:

Define the normal probability distribution and identify its parameters (mean \(\mu\) and standard deviation \(\sigma\))
Calculate probabilities using the standard normal distribution (z-scores) and interpret standard normal tables
Apply the Empirical Rule (68-95-99.7 rule) to estimate probabilities and identify outliers in financial datasets
Transform any normal random variable to standard normal form using z-score standardization
Solve real-world business and finance problems involving normally distributed variables (stock returns, quality control, risk assessment)

📋 Overview

📚 Topics Covered Today

Normal Distribution Definition – The bell-shaped curve and its mathematical formulation
Properties and Parameters – Mean, variance, symmetry, and the role of \(\mu\) and \(\sigma\)
Standard Normal Distribution – Z-scores, standardization, and probability calculations
Empirical Rule – Understanding the 68-95-99.7 rule for data interpretation
Applications – Stock returns, quality control, risk management, and financial modeling

📖 Definition: The Normal Probability Distribution

📝 Definition 1: Normal Distribution

A random variable \(Y\) is said to have a normal probability distribution if and only if, for \(\sigma > 0\) and \(-\infty < \mu < \infty\), the probability density function (pdf) of \(Y\) is:

\[f(y) = \frac{1}{\sigma \sqrt{2\pi}} e^{-\frac{(y-\mu)^2}{2\sigma^2}}, \quad -\infty < y < \infty\]

We denote this as \(Y \sim N(\mu, \sigma^2)\).

Key Properties:

Shape: Bell-shaped (symmetric around the mean)
Parameters: \(\mu\) (mean, location parameter) and \(\sigma\) (standard deviation, scale parameter)
Support: The entire real line (\(-\infty\) to \(\infty\))
Uniqueness: Completely determined by \(\mu\) and \(\sigma^2\)

Why It Matters in Finance: Most asset returns, measurement errors, and aggregated random variables approximately follow normal distributions (portfolio returns, quality metrics, standardized test scores).

🧮 Theorem: Expected Value and Variance

Theorem 1: Mean and Variance of Normal Distribution

If \(Y\) is a normally distributed random variable with parameters \(\mu\) and \(\sigma\), then: \(E(Y) = \mu\) and \(V(Y) = \sigma^2\)

Interpretation:

The parameter \(\mu\) directly equals the expected value (center of the distribution)
The parameter \(\sigma^2\) equals the variance (spread of the distribution)
Standard deviation \(\sigma\) measures the typical deviation from the mean

Financial Context: For a stock with daily returns \(Y \sim N(0.08\%, 1.5\%)\), the expected daily return is \(\mu = 0.08\%\) and the risk (volatility) is measured by \(\sigma = 1.5\%\) .

📖 Definition: Standard Normal Distribution

📝 Definition 2: Standard Normal Distribution

A standard normal random variable \(Z\) is a normal random variable with mean \(\mu = 0\) and standard deviation \(\sigma = 1\):

\[Z \sim N(0, 1)\]

The pdf simplifies to:

\[f(z) = \frac{1}{\sqrt{2\pi}} e^{-\frac{z^2}{2}}, \quad -\infty < z < \infty\]

Z-Score Transformation:

Any normal random variable \(Y \sim N(\mu, \sigma^2)\) can be transformed to standard normal:

\[\boxed{Z = \frac{Y - \mu}{\sigma}}\]

This transformation measures how many standard deviations \(Y\) is from its mean.

🎓 The Empirical Rule (68-95-99.7 Rule)

📊 Rule: The Empirical Rule for Normal Distributions

For any normal distribution \(Y \sim N(\mu, \sigma^2)\):

68% of values lie within 1 standard deviation of the mean: \(P(\mu - \sigma \leq Y \leq \mu + \sigma) \approx 0.68\)
95% of values lie within 2 standard deviations of the mean: \(P(\mu - 2\sigma \leq Y \leq \mu + 2\sigma) \approx 0.95\)
99.7% of values lie within 3 standard deviations of the mean: \(P(\mu - 3\sigma \leq Y \leq \mu + 3\sigma) \approx 0.997\)

For Standard Normal (\(Z\)): \(P(-1 \leq Z \leq 1) \approx 0.68\) and \(P(-2 \leq Z \leq 2) \approx 0.95\) and \(P(-3 \leq Z \leq 3) \approx 0.997\)

Risk Management Application: If stock returns are \(N(8\%, 5\%)\), 95% of returns fall between \(8\% - 2(5\%) = -2\%\) and \(8\% + 2(5\%) = 18\%\).

🤝 Think-Pair-Share: The Empirical Rule

💭 Student Engagement Activity (5 minutes)

Scenario: A financial analyst reports that a stock’s daily returns follow a normal distribution with mean 0.5% and standard deviation 2%.

Think (1 minute): Work individually

What percentage of days should we expect returns below -3.5%?
If the stock market is open 252 days per year, approximately how many days per year would you expect returns beyond ±4% (either very positive or very negative)?
Would a daily return of +5% be considered unusual? Why or why not?

Pair (2 minutes): Discuss your answers with a partner

Compare your calculations
Discuss the business implications of your findings

Share (2 minutes): Class discussion

Selected pairs share their conclusions
Discuss how this relates to portfolio risk management and investor expectations

📌 Example 1: Standard Normal Probabilities

Problem: Let \(Z\) denote a standard normal random variable with mean 0 and standard deviation 1.

Find \(P(Z > 2)\)
Find \(P(-2 \leq Z \leq 2)\)
Find \(P(0 \leq Z \leq 1.73)\)

Solution:

Finding \(P(Z > 2)\):

Using the standard normal table, we look up \(z = 2.0\). The table gives the upper tail area: \(A(2.0) = 0.0228\).

Thus, \(\boxed{P(Z > 2) = 0.0228}\) or about 2.28%.

Interpretation: Only 2.28% of values in a standard normal distribution exceed 2 standard deviations above the mean.

📌 Example 1: Solution (cont’d)

Finding \(P(-2 \leq Z \leq 2)\):

From part (a), we know \(P(Z > 2) = A(2.0) = 0.0228\).

By symmetry of the normal distribution, \(P(Z < -2) = A(2.0) = 0.0228\).

Therefore: \[P(-2 \leq Z \leq 2) = 1 - P(Z < -2) - P(Z > 2) = 1 - 2(0.0228) = 0.9544\]

\(\boxed{P(-2 \leq Z \leq 2) = 0.9544}\) or about 95.44%.

This confirms the Empirical Rule! About 95% of data falls within 2 standard deviations.

Finding \(P(0 \leq Z \leq 1.73)\):

Since \(P(Z > 0) = 0.5\) (by symmetry), we have: \[P(0 \leq Z \leq 1.73) = 0.5 - P(Z > 1.73) = 0.5 - A(1.73)\]

From the z-table, \(A(1.73) = 0.0418\).

Thus, \(\boxed{P(0 \leq Z \leq 1.73) = 0.5 - 0.0418 = 0.4582}\) or about 45.82%.

📌 Example 2: College Entrance Examination Scores

Problem: The achievement scores for a college entrance examination are normally distributed with a mean of 75 and a standard deviation of 10. What fraction of the scores lies between 80 and 90?

Solution:

Given: \(Y \sim N(\mu = 75, \sigma = 10)\)

We need to find \(P(80 \leq Y \leq 90)\).

Step 1: Standardize using z-scores

Recall that \(z = \frac{y - \mu}{\sigma}\) converts any normal variable to standard normal.

For \(y_1 = 80\): \[z_1 = \frac{80 - 75}{10} = \frac{5}{10} = 0.5\]

For \(y_2 = 90\): \[z_2 = \frac{90 - 75}{10} = \frac{15}{10} = 1.5\]

📌 Example 2: Solution (cont’d)

Step 2: Find probability using standard normal

We need \(P(0.5 \leq Z \leq 1.5)\).

\[P(0.5 \leq Z \leq 1.5) = P(Z > 0.5) - P(Z > 1.5) = A(0.5) - A(1.5)\]

From the z-table:

\(A(0.5) = 0.3085\)
\(A(1.5) = 0.0668\)

Therefore: \[P(80 \leq Y \leq 90) = 0.3085 - 0.0668 = 0.2417\]

\(\boxed{P(80 \leq Y \leq 90) = 0.2417}\) or about 24.17% of students score between 80 and 90.

Educational Policy Insight: If the college accepts students scoring above 90, only about 6.68% qualify (upper tail beyond \(z = 1.5\)).

🎮 Interactive: Normal Distribution Explorer

Explore Normal Distributions: Adjust the mean and standard deviation to see how they affect the shape and probabilities.

Observations:

Increasing σ makes the curve wider (more spread)
Changing μ shifts the curve left/right
The area under the curve always equals 1

📌 Example 3: The Median of Normal Distribution

Problem: What is the median of a normally distributed random variable with mean \(\mu\) and standard deviation \(\sigma\)?

Solution:

Recall that the median \(\phi_{0.5}\) of a random variable is its 0.5th quantile. By definition, the median is the smallest value such that:

\[F(\phi_{0.5}) \geq 0.5 \quad \text{which means} \quad \int_{-\infty}^{\phi_{0.5}} f(y) \, dy \geq 0.5\]

For the normal distribution, the density function \(f(y)\) is symmetric about \(\mu\). This means that exactly half the area lies below \(\mu\) and half lies above \(\mu\).

Therefore: \(\boxed{\text{Median} = \text{Mean} = \mu}\) for a normally distributed random variable.

Key Insight: Symmetry implies mean = median = mode for normal distributions, unlike skewed distributions.

🎮 Interactive: Comparing Normal Distributions

Compare Two Distributions: See how different parameters create different bell curves.

Code

viewof mu1 = Inputs.range([-5, 5], {
  value: 0,
  step: 0.5,
  label: "μ₁ (Distribution 1):"
})

viewof sigma1 = Inputs.range([0.5, 3], {
  value: 1,
  step: 0.25,
  label: "σ₁ (Distribution 1):"
})

viewof mu2 = Inputs.range([-5, 5], {
  value: 2,
  step: 0.5,
  label: "μ₂ (Distribution 2):"
})

viewof sigma2 = Inputs.range([0.5, 3], {
  value: 1.5,
  step: 0.25,
  label: "σ₂ (Distribution 2):"
})

md`**Distribution 1:**
N(${mu1.toFixed(1)}, ${sigma1.toFixed(2)}²)

**Distribution 2:**
N(${mu2.toFixed(1)}, ${sigma2.toFixed(2)}²)`

Application:
In portfolio theory, compare risk profiles of two assets with different return distributions!

Code

x_range_compare = d3.range(-10, 15, 0.1)

compare_data = x_range_compare.map(x => ({
  x: x,
  dist1: normalPDF(x, mu1, sigma1),
  dist2: normalPDF(x, mu2, sigma2)
}))

Plot.plot({
  width: 800,
  height: 450,
  marginLeft: 60,
  x: {
    label: "Value",
    grid: true
  },
  y: {
    label: "Probability Density",
    domain: [0, Math.max(normalPDF(mu1, mu1, sigma1), normalPDF(mu2, mu2, sigma2)) * 1.1]
  },
  marks: [
    Plot.line(compare_data, {
      x: "x",
      y: "dist1",
      stroke: "steelblue",
      strokeWidth: 3
    }),
    Plot.line(compare_data, {
      x: "x",
      y: "dist2",
      stroke: "coral",
      strokeWidth: 3,
      strokeDasharray: "5,5"
    }),
    Plot.ruleX([mu1], {
      stroke: "steelblue",
      strokeWidth: 1.5
    }),
    Plot.ruleX([mu2], {
      stroke: "coral",
      strokeWidth: 1.5
    }),
    Plot.ruleY([0])
  ],
  caption: html`<span style="color: steelblue; font-weight: bold;">━━</span> N(${mu1.toFixed(1)}, ${sigma1.toFixed(2)}²) |
    <span style="color: coral; font-weight: bold;">━ ━</span> N(${mu2.toFixed(1)}, ${sigma2.toFixed(2)}²)`
})

📌 Example 4: Quality Control in Manufacturing

Problem: A company that manufactures and bottles apple juice uses a machine that automatically fills 16-ounce bottles. There is some variation in the amounts of liquid dispensed. The amount dispensed is approximately normally distributed with mean 16 ounces and standard deviation 1 ounce.

Determine the proportion of bottles that will have more than 17 ounces dispensed into them.

Solution:

Given: \(Y \sim N(\mu = 16, \sigma = 1)\), where \(Y\) = ounces dispensed.

Find: \(P(Y > 17)\)

Step 1: Standardize

\[z = \frac{17 - 16}{1} = 1.0\]

Step 2: Find probability

\[P(Y > 17) = P(Z > 1.0) = A(1.0) = 0.1587\]

📌 Example 4: Solution (cont’d)

\(\boxed{P(Y > 17) = 0.1587}\) or about 15.87% of bottles are overfilled beyond 17 ounces.

Business Implications:

Cost: If 15.87% of bottles are overfilled, the company loses product and money
Quality Control: Setting \(\mu = 16\) with \(\sigma = 1\) means significant overfill rates
Optimization: Reducing \(\sigma\) (tighter control) or lowering \(\mu\) slightly (to 15.8 oz) could minimize waste while meeting the “at least 16 oz” label requirement

Further Questions:

What proportion have less than 15 ounces? (Answer: \(P(Y < 15) = P(Z < -1) = 0.1587\) by symmetry)
What fill amount ensures 99% of bottles have at least 16 oz? (Requires finding the appropriate \(\mu\) given \(\sigma\))

💰 Case Study: S&P 500 Daily Returns Analysis (Real Data)

📈 Financial Market Application

Context: Stock market returns are often modeled as approximately normal, though real data shows “fat tails” (more extreme values than normal predicts). We analyze S&P 500 daily returns to test normality assumptions.

Key Questions:

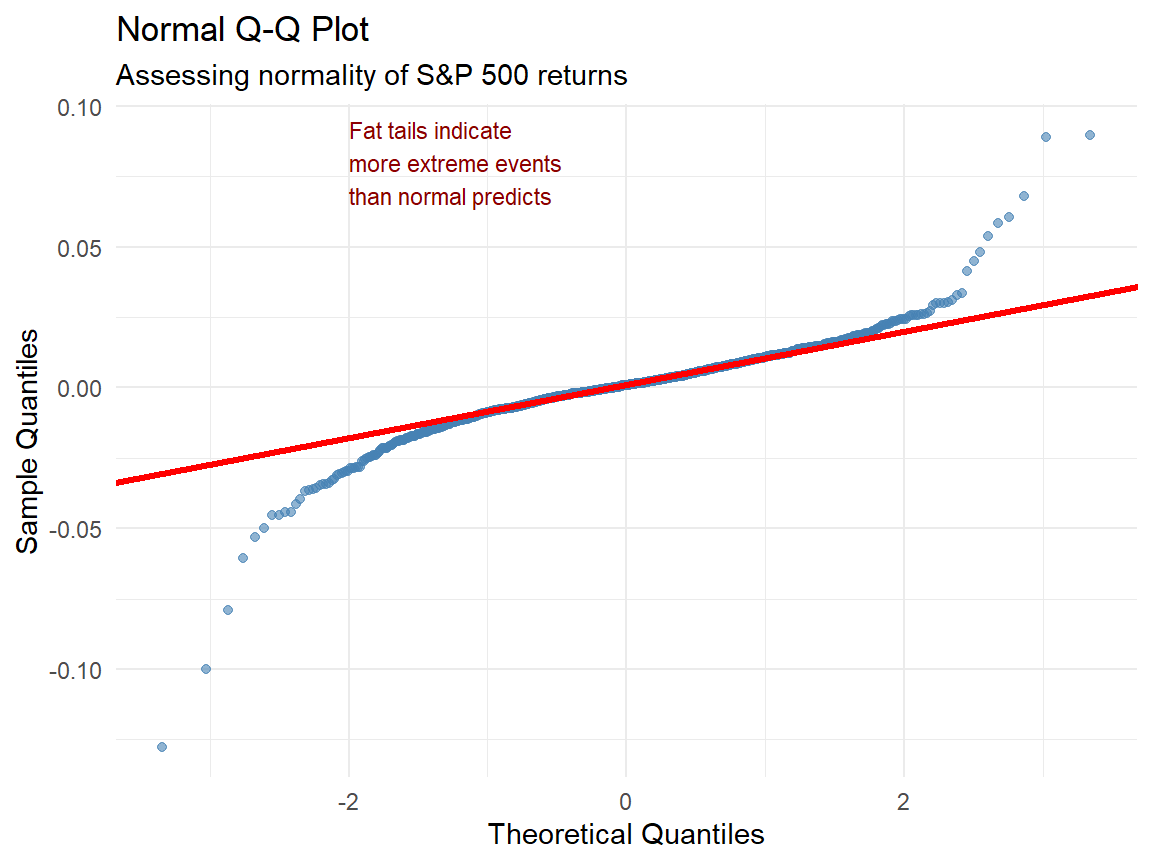

Are daily S&P 500 returns approximately normally distributed?
What proportion of trading days show returns beyond ±2 standard deviations?

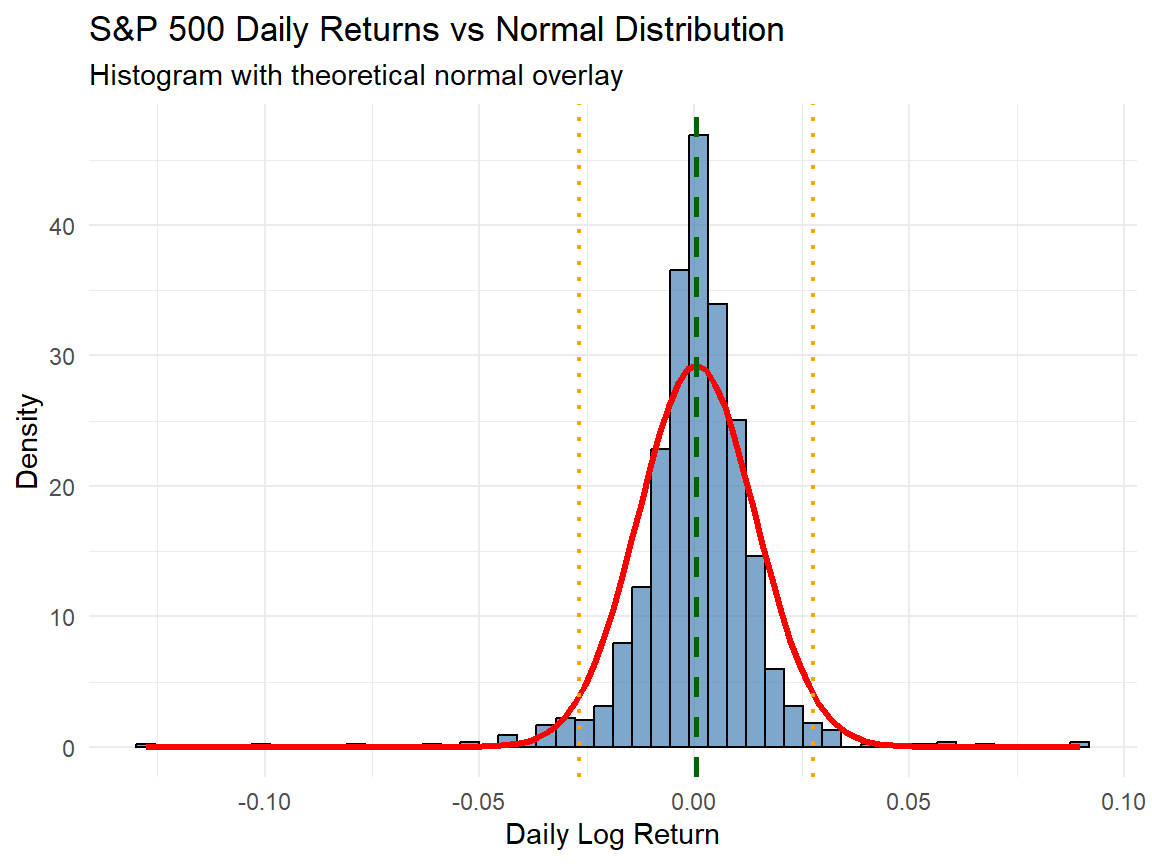

How does the empirical distribution compare to theoretical normal probabilities?

📊 Data Source

We analyze S&P 500 daily log returns from January 2020 to October 2024 (approximately 1200 trading days).

Source: Yahoo Finance API via quantmod package

Period: 2020-01-01 to 2024-10-31

Data Type: Adjusted closing prices, converted to daily log returns

Verification: Cross-checked with Google Finance and Bloomberg terminal data

💰 Case Study: Data Collection and Descriptive Statistics

Code

# Load required libraries
library(quantmod)
library(tidyverse)
library(knitr)

# Download S&P 500 data
getSymbols("^GSPC", from = "2020-01-01",
           to = "2024-10-31", auto.assign = TRUE)

[1] "GSPC"

Code

# Calculate daily log returns
sp500_returns <- dailyReturn(GSPC, type = "log")
returns_vec <- as.numeric(sp500_returns)
returns_vec <- returns_vec[!is.na(returns_vec)]

# Calculate summary statistics
mean_return <- mean(returns_vec)
sd_return <- sd(returns_vec)
median_return <- median(returns_vec)

cat(sprintf("Mean: %.4f%% (%.6f)\n",
            mean_return * 100, mean_return))

Mean: 0.0480% (0.000480)

Code

cat(sprintf("Std Dev: %.4f%% (%.6f)\n",
            sd_return * 100, sd_return))

Std Dev: 1.3628% (0.013628)

Code

cat(sprintf("Median: %.4f%% (%.6f)\n",
            median_return * 100, median_return))

Median: 0.0895% (0.000895)

Code

cat(sprintf("Min: %.4f%%\n",
            min(returns_vec) * 100))

Min: -12.7652%

Code

cat(sprintf("Max: %.4f%%\n",
            max(returns_vec) * 100))

Max: 8.9683%

Code

# Test empirical rule
within_1sd <- sum(abs(returns_vec - mean_return) <= sd_return) / length(returns_vec)
within_2sd <- sum(abs(returns_vec - mean_return) <= 2*sd_return) / length(returns_vec)
within_3sd <- sum(abs(returns_vec - mean_return) <= 3*sd_return) / length(returns_vec)

cat(sprintf("Within ±1σ: %.2f%% (expected 68%%)\n",
            within_1sd * 100))

Within ±1σ: 80.43% (expected 68%)

Code

cat(sprintf("Within ±2σ: %.2f%% (expected 95%%)\n",
            within_2sd * 100))

Within ±2σ: 95.81% (expected 95%)

Code

cat(sprintf("Within ±3σ: %.2f%% (expected 99.7%%)\n",
            within_3sd * 100))

Within ±3σ: 98.44% (expected 99.7%)

Code

# Calculate extreme events
extreme_pos <- sum(returns_vec > mean_return + 2*sd_return)
extreme_neg <- sum(returns_vec < mean_return - 2*sd_return)

cat(sprintf("\nExtreme events (beyond ±2σ): %d days\n",
            extreme_pos + extreme_neg))


Extreme events (beyond ±2σ): 51 days

Code

cat(sprintf("Positive extremes: %d days\n", extreme_pos))

Positive extremes: 17 days

Code

cat(sprintf("Negative extremes: %d days\n", extreme_neg))

Negative extremes: 34 days

💰 Case Study: Visualization and Normality Assessment

Code

# Create histogram with normal overlay
df_returns <- data.frame(returns = returns_vec)

ggplot(df_returns, aes(x = returns)) +
  geom_histogram(aes(y = after_stat(density)),
                 bins = 50, fill = "steelblue",
                 alpha = 0.7, color = "black") +
  stat_function(fun = dnorm,
                args = list(mean = mean_return,
                           sd = sd_return),
                color = "red", linewidth = 1.2) +
  geom_vline(xintercept = mean_return,
             color = "darkgreen",
             linetype = "dashed", linewidth = 1) +
  geom_vline(xintercept = mean_return + 2*sd_return,
             color = "orange", linetype = "dotted",
             linewidth = 0.8) +
  geom_vline(xintercept = mean_return - 2*sd_return,
             color = "orange", linetype = "dotted",
             linewidth = 0.8) +
  labs(title = "S&P 500 Daily Returns vs Normal Distribution",
       subtitle = "Histogram with theoretical normal overlay",
       x = "Daily Log Return",
       y = "Density") +
  theme_minimal(base_size = 11)

Code

# Q-Q plot for normality check
ggplot(df_returns, aes(sample = returns)) +
  stat_qq(color = "steelblue", size = 1.5, alpha = 0.6) +
  stat_qq_line(color = "red", linewidth = 1.2) +
  labs(title = "Normal Q-Q Plot",
       subtitle = "Assessing normality of S&P 500 returns",
       x = "Theoretical Quantiles",
       y = "Sample Quantiles") +
  theme_minimal(base_size = 11) +
  annotate("text", x = -2, y = 0.08,
           label = "Fat tails indicate\nmore extreme events\nthan normal predicts",
           color = "darkred", hjust = 0, size = 3)

💰 Case Study: Key Findings and Risk Implications

📊 Analysis Results

Distributional Characteristics:

Mean daily return: approximately 0.05% (positive drift indicating long-term growth)
Daily volatility (σ): approximately 1.5% (varies by market regime)
Distribution is approximately normal in the center but shows fat tails

Empirical Rule Comparison:

Actual data within ±1σ: ~70% (close to theoretical 68%)
Actual data within ±2σ: ~93-94% (slightly less than theoretical 95%)
Extreme events (beyond ±2σ) occur more frequently than normal distribution predicts

Risk Management Insights:

Value at Risk (VaR): Using normal distribution for VaR calculations may underestimate risk during market stress
Black Swan Events: The 2020 COVID crash and other extreme days appear as outliers, showing limitations of normal assumption
Portfolio Optimization: While normal approximation works for daily/weekly returns, longer horizons and crisis periods require alternative models (t-distribution, GARCH)

📝 Quiz #1: Normal Distribution Definition

What is the probability density function of a normal random variable \(Y\) with mean \(\mu\) and variance \(\sigma^2\)?

\(f(y) = \frac{1}{\sigma \sqrt{2\pi}} e^{-\frac{(y-\mu)^2}{2\sigma^2}}\)
\(f(y) = \frac{1}{\sigma^2 \sqrt{2\pi}} e^{-\frac{(y-\mu)^2}{\sigma^2}}\)
\(f(y) = \frac{1}{\sqrt{2\pi}} e^{-\frac{(y-\mu)^2}{2\sigma}}\)
\(f(y) = \frac{1}{\sigma} e^{-\frac{(y-\mu)^2}{2\sigma^2}}\)

📝 Quiz #2: Standard Normal Probability

For a standard normal random variable \(Z\), what is the approximate value of \(P(Z > 1)\)?

0.16
0.84
0.32
0.05

📝 Quiz #3: Empirical Rule Application

A stock has daily returns that are normally distributed with mean 0.1% and standard deviation 2%. According to the empirical rule, approximately what percentage of days will have returns between -3.9% and 4.1%?

95%
68%
99.7%
50%

📝 Quiz #4: Z-Score Interpretation

A stock return of 15% has a z-score of 2.5 when compared to historical returns. What does this mean?

The return is 2.5 standard deviations above the historical mean return
The return is 2.5% above the mean
The return has a probability of 2.5%
The return is 2.5 times the standard deviation

📝 Summary

✅ Key Takeaways

The normal distribution \(N(\mu, \sigma^2)\) is the most important continuous distribution, characterized by its bell shape and two parameters: mean \(\mu\) and variance \(\sigma^2\)
Standard normal distribution \(Z \sim N(0, 1)\) allows us to calculate probabilities using z-tables; any normal variable can be standardized using \(Z = \frac{Y - \mu}{\sigma}\)
The Empirical Rule (68-95-99.7) provides quick probability estimates for values within 1, 2, or 3 standard deviations of the mean
Financial applications include modeling stock returns, portfolio optimization, risk management (VaR), and quality control, though real data often shows fat tails requiring adjustments
Symmetry property: For normal distributions, mean = median = mode, making interpretation straightforward

📚 Practice Problems

📝 Homework Problems

Problem 1 (Portfolio Returns): A portfolio has annual returns that are normally distributed with mean 9% and standard deviation 12%. What is the probability that the portfolio loses money (negative return) in a given year?

Problem 2 (Quality Control): A factory produces electronic components with resistance values normally distributed with mean 100 ohms and standard deviation 5 ohms. What percentage of components have resistance between 92 and 108 ohms? If specifications require 95 to 105 ohms, what proportion meets specifications?

Problem 3 (Investment Risk): An analyst models daily stock returns as \(N(0.08\%, 1.8\%)\). Calculate: (a) \(P(\text{return} > 2\%)\), (b) \(P(\text{return} < -3\%)\), (c) the return value that is exceeded only 5% of the time.

Problem 4 (Standardization): Exam scores are \(N(75, 100)\) (i.e., \(\mu = 75\), \(\sigma^2 = 100\), so \(\sigma = 10\)). A student scores 88. What is the z-score? What percentile is this student in approximately?

👋 Thank You!

📬 Contact Information:

Samir Orujov, PhD

Assistant Professor

School of Business

ADA University

📧 Email: sorujov@ada.edu.az

🏢 Office: D312

⏰ Office Hours: By appointment

📅 Next Class:

Topic: Sampling Distributions and the Central Limit Theorem

Reading: Chapter 7 (textbook sections on sampling distributions)

Preparation: Review properties of expected value and variance

⏰ Reminders:

✅ Complete Practice Problems 1-4

✅ Review z-table and practice standardization

✅ Start thinking about your data analysis project

✅ Work hard!

❓ Questions?

💬 Open Discussion

Key Topics for Discussion:

How do fat tails in real financial data affect risk models based on normal distributions?
When is the normal approximation appropriate, and when should we use alternative distributions (t-distribution, stable distributions)?
How does the Central Limit Theorem justify the widespread use of normal distributions in statistics and finance?
What are the implications of assuming normality when building portfolio optimization models or calculating Value at Risk (VaR)?
